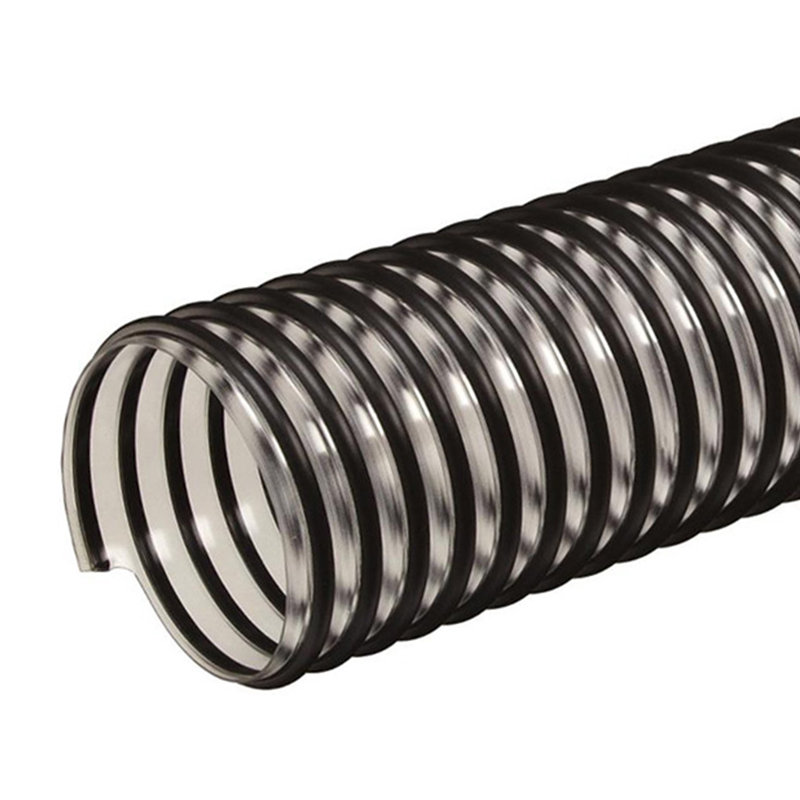

PU Helix Duct Hose
Tube: Top grade of PU
Reinforcement: Rigid PVC
Temperature: -32℃ to +90℃ (-90℉ to +196℉)
Application: As suction and transport hose, it’s suitable for the following substances:
Abrasive solids such as dusts, powders, chips and grains, Gaseous and liquid media, Also ideal as ventilation hose for air conditioning and ventilation system.
PU Duct Hose Pipe is a lightweight and flexible hose designed for air, dust and light material. It is made from polyurethane and suitable for industrial air movement, fume control and dust collection.
The polyurethane wall and rigid PVC helix reinforcement offer the flexible duct hose excellent compressibility, abrasion and chemical resistance. Polyurethane has excellent sliding and impact abrasion, fuels,oils, grease and solvents resistance.
These make extraction ducting especially suitable for auto, steel and aluminum manufactures and printing. They are available in black or clear color.
| Code | ID | OD | L |
| mm | mm | m | |
| PHD-16 | 16 | 23 | 20 |
| PHD-20 | 20 | 27 | 20 |
| PHD-25 | 25 | 32 | 20 |
| PHD-27 | 27 | 34 | 20 |
| PHD-30 | 30 | 37 | 20 |
| PHD-32 | 32 | 38 | 20 |
| PHD-35 | 35 | 42 | 20 |
| PHD-38 | 38 | 49 | 20 |
| PHD-40 | 40 | 46 | 20 |
| PHD-45 | 45 | 51 | 20 |
| PHD-51 | 51 | 58 | 20 |
| PHD-55 | 55 | 62 | 20 |
| PHD-60 | 60 | 69 | 20 |
| PHD-63 | 63 | 72 | 20 |
| PHD-65 | 65 | 74 | 20 |
| PHD-70 | 70 | 79 | 20 |
| PHD-76 | 76 | 85 | 20 |
| PHD-80 | 80 | 90 | 20 |
| PHD-90 | 90 | 101 | 20 |
| PHD-100 | 100 | 111 | 20 |
| PHD-102 | 102 | 112 | 20 |
| PHD-110 | 110 | 122 | 20 |
| PHD-120 | 120 | 132 | 20 |
| PHD-127 | 127 | 137 | 20 |
| PHD-130 | 130 | 140 | 20 |
| PHD-140 | 140 | 150 | 20 |
| PHD-150 | 150 | 162 | 10 |
| PHD-154 | 154 | 165 | 10 |
| PHD-160 | 160 | 172 | 10 |
| PHD-170 | 170 | 182 | 10 |
| PHD-180 | 180 | 192 | 10 |
| PHD-200 | 200 | 215 | 5 |
| PHD-203 | 203 | 215 | 5 |
| PHD-210 | 210 | 222 | 5 |
| PHD-250 | 250 | 262 | 5 |
| PHD-300 | 300 | 312 | 5 |
