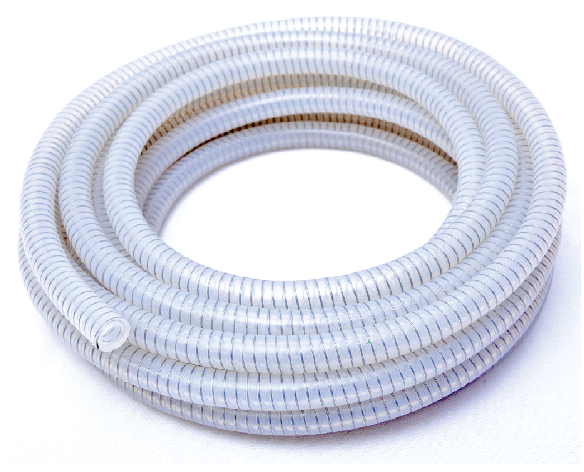

Food Grade Silicone Wire Reinforced Hose
Inner/outer layer: transparent food grade platinum silica gel
Reinforcing layer: spiral 304 stainless steel wire with a spacing of ó mm
Internal diameter: 6mm-102mm(Support customization)
Standard length: 6M/10M length
Operating temperature range: -600℃/+180℃
Application: it is commonly used in the suction of liquid, solid and powder in the pharmaceutical industry and beauty and make up industry. in the food industry,
it is often used to transport edible oil and vinegar and can also be used to transport wine,Bai jiu with alcohol content of 50%
| Code | ID | THICKNESS | OD OUTER DIA |
BEND RADIUS (mm) |
WP | BP | L | VACUUM | ||||
| inch | mm | mm | inch | mm | Bar | psi | Bar | psi | m/pc | |||
| AY00-013 | 1/2″ | 13 | 5 | 0.91 | 23.0 | 70 | 5.5 | 78.1 | 13.75 | 199.375 | 6 or 10 | 0.91Bar |
| AY00-016 | 5/8″ | 16 | 5 | 1.03 | 26.0 | 85 | 5.10 | 72.42 | 12.75 | 184.88 | ||
| AY00-019 | 3/4″ | 19 | 5 | 1.15 | 29.0 | 105 | 4.5 | 63.9 | 11.25 | 163.125 | ||
| AY00-025 | 1″ | 25 | 5 | 1.42 | 35.0 | 121 | 3.90 | 55.38 | 9.75 | 141.38 | ||
| AY00-032 | 1-1/4″ | 32 | 5 | 1.69 | 42.0 | 137 | 3.36 | 47.712 | 8.4 | 121.8 | ||
| AY00-038 | 1-1/2″ | 38 | 5 | 1.89 | 48.0 | 163 | 3.14 | 44.59 | 7.85 | 113.83 | ||
| AY00-051 | 2″ | 51 | 5 | 2.44 | 61.0 | 238 | 2.40 | 34.08 | 6.00 | 87.00 | ||
| AY00-057 | 2-1/4″ | 57 | 5 | 2.64 | 67.0 | 282 | 2.3 | 32.66 | 5.75 | 83.375 | ||
| AY00-063 | 2-1/2″ | 63 | 5 | 2.88 | 73.0 | 337 | 2.24 | 31.81 | 5.60 | 81.20 | ||
| AY00-076 | 3″ | 76 | 5 | 3.39 | 86.0 | 491 | 1.78 | 25.276 | 4.45 | 64.525 | ||
